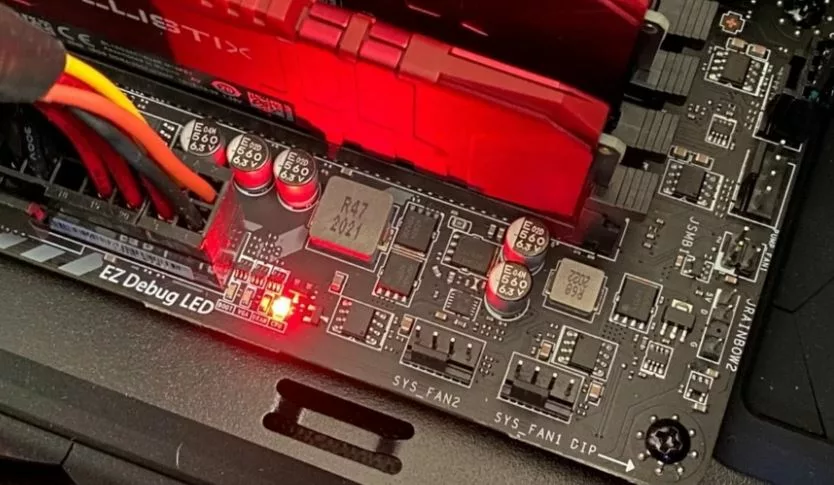

How to Fix “Red Light” issue on Motherboard

233

How to Fix “Red Light” issue on Motherboard: In a computer, the motherboard is the location where all of the connections and circuitry are located. Through the motherboard, your Power Supply Unit, Storage Disc, Random Access Memory (RAM), Graphics Processing Unit (GPU), and Processor all communicate with one another. It then instructs each of the components to carry out the desired activity after it has distributed the power to all of the components.

As a result, it is not surprising that the motherboard will identify any problems that may exist in this hardware. It can demonstrate in a variety of ways that your system is malfunctioning in some way. There is one indication that you must not disregard, and that is the blinking of an LED light, particularly a red one on the motherboard.

When the red LED on the motherboard lights up, it may indicate a number of different problems, ranging from simple improper or loose connections and seatings to severe damage to the hardware. There are times when the red light flashes in conjunction with beeping sounds, and there are also times when the display is lost. It is possible for each of these to have a different meaning depending on the system. Here are the steps how to Fix “Red Light” issue on Motherboard.

What are the causes of “Red Light” issue on Motherboard

1. Hardware Failure: Components such as the CPU, RAM, GPU, or power supply may be malfunctioning, triggering the red light indicator.
2. Overheating: Excessive heat buildup within the system can lead to components triggering the red light as a safety measure to prevent damage.
3. Power Supply Issues: Inadequate or faulty power supply units (PSUs) can cause voltage irregularities, leading to the red light indication.
4. Connection Problems: Loose or improperly connected cables, connectors, or components can result in the red light issue.
5. BIOS/UEFI Settings: Incorrect BIOS/UEFI configurations or firmware issues may trigger the red light indicator on the motherboard.
6. Faulty Motherboard: A defective motherboard itself could be the root cause of the red light issue, indicating a need for replacement or repair.
7. Peripheral Issues: Problems with connected peripherals such as expansion cards, storage drives, or external devices may trigger the red light on the motherboard.

How to Fix “Red Light” issue on Motherboard

Perform Basic Checks

1. Ensure all power cables are securely connected to the motherboard, CPU, GPU, and other components.
2. Verify that the RAM sticks are properly seated in their slots.
3. Check for any loose connections or damaged components.

Identify the Source of the Red Light

1. Turn off your PC and unplug it from the power source.
2. Open the computer case and locate the motherboard.
3. Look for any small LED lights labeled with diagnostic codes or indicators.
4. Identify the LED that is glowing red, if present.

Check the Motherboard Manual

1. Refer to your motherboard’s user manual or visit the manufacturer’s website to understand the meaning of the red light.
2. Look for a section related to LED diagnostic indicators or troubleshooting.

Inspect Components and Connections

1. Carefully inspect all components connected to the motherboard, including RAM, CPU, GPU, and power cables.
2. Ensure that everything is securely seated and properly connected.
3. Look for any signs of physical damage or overheating.

Test Each Component

1. Start by removing all unnecessary components (e.g., extra RAM sticks, additional GPUs).
2. Power on the PC and see if the red light persists.
3. If the light disappears, gradually reintroduce each component one at a time, testing after each addition.
4. This helps identify if a specific component is causing the issue.

Reset CMOS

1. Locate the CMOS battery on the motherboard.
2. Carefully remove the battery for a few seconds and then reinsert it.
3. This resets the BIOS settings to default, which can sometimes resolve hardware issues.

Update BIOS

1. Visit the motherboard manufacturer’s website and download the latest BIOS version for your motherboard model.
2. Follow the instructions provided by the manufacturer to update the BIOS.
3. Be cautious during this process, as an improper BIOS update can damage your motherboard.

Test with a Different Power Supply

1. If possible, borrow or purchase a different power supply unit (PSU).
2. Disconnect the current PSU and connect the new one.
3. Power on the PC and check if the red light persists.
4. A faulty power supply can sometimes cause motherboard issues.

Conclusion

When there is a problem with your system, the red light that is displayed on the motherboard will typically illuminate. A red light will flash on the motherboard whenever any of the hardware is either nowhere to be found or is functioning improperly. On the other hand, different users will experience a red light on the motherboard depending on the circumstances. There is a possibility that some will get a red light when there is an issue with the hardware, while others may get a red light when there is a problem with the RAM.
