How to Fix ‘Virtual Machine Disk Consolidation Is Needed’ issue

How to Fix ‘Virtual Machine Disk Consolidation Is Needed’ issue: This problem usually happens in VMware setups where there are extra files or discs that aren’t being used by virtual machines. This wastes space and could lead to speed issues. Luckily, this is easy to fix with just a few simple steps. We’ll show you how to find these discs and combine them in this guide so that your virtual world works well and makes good use of its resources.

No matter how much you know about VMware or how new you are to virtualization, these methods will make it easy for you to fix the disc consolidation problem. Let us go over the steps together so that your virtual machines can work normally again. By following these simple ways how to Fix ‘Virtual Machine Disk Consolidation Is Needed’ issue, you can be sure that your virtual setup works perfectly and doesn’t have any problems with disc space.

What is ‘Virtual Machine Disk Consolidation Is Needed’ issue

When there are many snapshots of virtual machine discs saved over time, the error message “Virtual Machine Disc Consolidation Is Needed” often shows up in virtual environments. Snapshots are copies of the virtual machine’s disc at certain points in time. If needed, users can go back to earlier states. However, if these snapshots build up without being properly managed or deleted, they can lead to fragmentation and wasteful use of disc space.

This problem is often brought up by virtualization management tools to show how important it is to combine discs. In this step, the snapshot files are merged into the base disc, and room that wasn’t being used is made available again. Ignoring this problem could cause a number of problems, such as slower speed, more storage usage, and even the possibility of data corruption.

Causes for ‘Virtual Machine Disk Consolidation Is Needed’ issue

1. Snapshot Deletion Failure: It failed to delete a snapshot. When a snapshot is taken of a VM, any changes made to its disc are briefly saved in a snapshot file. If for some reason getting rid of these snapshots fails, it could leave behind snapshot change files that need to be merged.
2. Snapshot Chain Growth: A snapshot chain can form when you take multiple copies of a VM without combining them. This chain can get longer over time, which can cause problems with disc space or slowness. In order to combine these snapshot files back into the base disc, consolidation is needed.
3. Not Enough Disc Space: The consolidation process might not work if the datastore where the VM’s files are saved doesn’t have enough free space. For the consolidation process to work, the hypervisor needs enough space.
4. Disc File Locks: The consolidation process might not be able to continue if there are still file locks on the virtual disc files. This could be because of an unfinished backup or a process that has stopped working.
5. Not All Disc Types or Features Can Be Used: The consolidation process might not work with all disc types or features, like thick-provisioned discs or virtual compatibility modes. In this case, conversion or changes might be needed before merging can happen.
6. Damage to the Disc: Damage to the virtual disc files’ discs can also stop consolidation from working. This kind of corruption can happen for many reasons, including problems with the hardware, the data, or the software.

How to Fix ‘Virtual Machine Disk Consolidation Is Needed’ issue

Identify Affected Virtual Machine(s)

1. Log in to your VMware vSphere or vCenter Server.
2. Navigate to the affected virtual machine or virtual machines experiencing the issue.

Check for Snapshots and Locked Files

1. Open the VM settings in the vSphere Client.
2. Navigate to the “Snapshots” tab and check for existing snapshots.
3. If snapshots are found, right-click and select either “Delete All” or “Delete” based on your requirements.
4. Confirm that no backup applications are currently accessing the VM disks to prevent file locks.

Verify Disk Consolidation Status

1. Right-click on the VM in the vSphere Client and select “Edit Settings“.

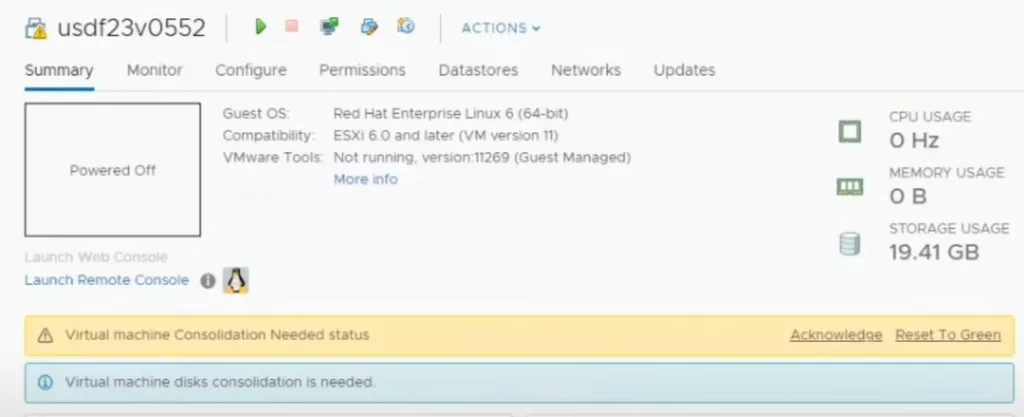

2. Go to the “Hard disk” section and check if there’s a message indicating disk consolidation is needed.
3. If so, proceed with the consolidation process.

Consolidate Disks

1. Before starting, ensure that there are no active snapshots on the VM. If there are, delete them.
2. Right-click on the VM in the vSphere Client and select “Edit Settings“.
3. Go to the “Hard disk” section.
4. Select each disk and check if the disk needs consolidation. If consolidation is needed, proceed to consolidate the disk.
5. To consolidate the disk, click on the “Consolidate” button.
6. Follow the prompts to complete the consolidation process.

Resolve Lock Issues

1. Check for any third-party backup applications connected to the VM.
2. Verify if these applications might be locking files.
3. Temporarily pause or disable any backup jobs linked to the affected VM.

Analyze Snapshot Hierarchy

1. If the issue persists even after deleting snapshots, analyze the snapshot hierarchy using tools like “vmkfstool -P“.
2. This might reveal corrupted snapshots or inconsistencies in the chain, requiring manual cleanup.

Consider Manual Consolidation

1. If automatic consolidation fails, attempt manual merging of delta disks into the base disk.
2. Utilize tools such as “vmkfstool -v” for the manual merging process.
3. Note that this procedure is advanced, requiring caution.
4. Before attempting, ensure proper backups are in place.

Conclusion

In conclusion, you need to fix the “Virtual Machine Disc Consolidation Is Needed” issue if you want to keep your virtual setup running smoothly and effectively. By following the simple steps in this guide, you can fix this problem and make sure your virtual machine runs smoothly. Regularly monitoring and controlling your virtual machine discs is not only a way to avoid problems with consolidation, but it also helps your machines run at their best and make the best use of their resources.

If you want to get the most out of virtualization technology, you need to keep your virtual world in good shape. By using these steps to fix problems, you’ll be able to confidently handle disc consolidation issues, keeping your virtual infrastructure strong and ready for your task. Remember that taking action now will go a long way towards making sure that your virtual machine is reliable and efficient in the long run, giving your digital activities a stable base.
