I’ve witnessed directly how recent advancements in technology have dramatically revolutionized the way in which we carry out our work, particularly in the domain of design. When I was younger, I had to do a lot of manual drafting, which was a work that was excruciatingly slow and exceedingly tedious. However, since the development of computer-aided design software, which is more commonly referred to as CAD, things have changed quite a bit for the better.
I have extensive expertise with the CAD software known as Autodesk AutoCAD, and as a result, I feel confident in recommending it to others without any reservations. When this program was originally made available, it marked a significant turning point in the history of the advancement of design technology, which occurred in the year 1982.
It was the very first piece of computer-aided design (CAD) software that was developed with the intention of being used on personal computers. Through the years, my experience with AutoCAD has demonstrated to me that it is highly efficient and accurate. These are attributes that have contributed to its development into a dependable companion for millions of professionals employed in the industry.
Autodesk AutoCAD Specifications
AutoCAD requires the above minimal system requirements. For optimal performance, utilize a machine with a faster processor, more memory, and a dedicated graphics card.
| Feature | Specification |
|---|---|
| Operating system | Windows 11, Windows 10 |
| Processor | 2.5–2.9 GHz processor (base) |
| Memory | 8 GB RAM (16 GB recommended) |
| Graphics card | 1 GB of VRAM with DirectX 11 support |
| Display resolution | 1920 x 1080 resolution with True Color |
| Storage | 10 GB of available disk space |
| Visit Website |
What is Autodesk AutoCAD?
AutoCAD is a manufacturing planning, product designing, building designing, construction, and civil engineering software program that was developed by Autodesk. AutoCAD is a computer-assisted design (CAD) program that works in three dimensions. AutoCAD is used for more than just the creation of 3D models; it is also utilized for drafting, document creation, and 2D drawing. Users are able to personalize texts, apply dimension styles, link data from Microsoft Excel tables and spreadsheets to the drawings, and make use of dynamic blocks thanks to the capabilities offered by the 2D drawing, annotation features, and drafting tools.
When it comes to 3D modeling and drawing, users have the ability to apply lighting and add materials to their models in order to achieve lifelike reproductions and appearances of their creations. with addition, you have control over the models’ edges, shading, and lighting when working with AutoCAD. Additionally, the app enables users to explore the interior of their own 3D models as they build them.
AutoCAD makes it possible for users to collaborate with team members while reviewing drawings and models by importing data from PDF files. Last but not least, the user interface can be customized to increase the speed of model editing and to better organize the AutoCAD tools so that they are easier to use.
Autodesk AutoCAD review: Industry-Specific Toolsets
In my time working with AutoCAD 2024, I’ve discovered that the product’s many toolkits, which are built to meet the requirements of a certain industry, make it a really helpful piece of software. One of the toolkits that has been of tremendous use to me is called the Architecture toolkit. It gives users access to a large library that contains more than 8,800 different architectural components and blocks. These components are easily modifiable to fulfill the specific necessities of each of my projects, which is a huge benefit in terms of both productivity and accuracy.
An additional helpful toolkit is the Electrical toolkit, which comes with a System Builder Tool and a remarkable collection of over 65,000 electrical symbols that may be customized in a variety of ways. In the field of electrical design, this toolbox has proven to be a game-changer for me personally. The improved automation tools included in this toolkit have proven to be an excellent time saver, in particular when it comes to chores such as automatically creating reports, labeling components, and numbering and tagging components and wires. Not only has it helped me become more productive, but it has also ensured the accuracy of the electrical designs I create.
Autodesk AutoCAD review: Integration Across Mobile and Web

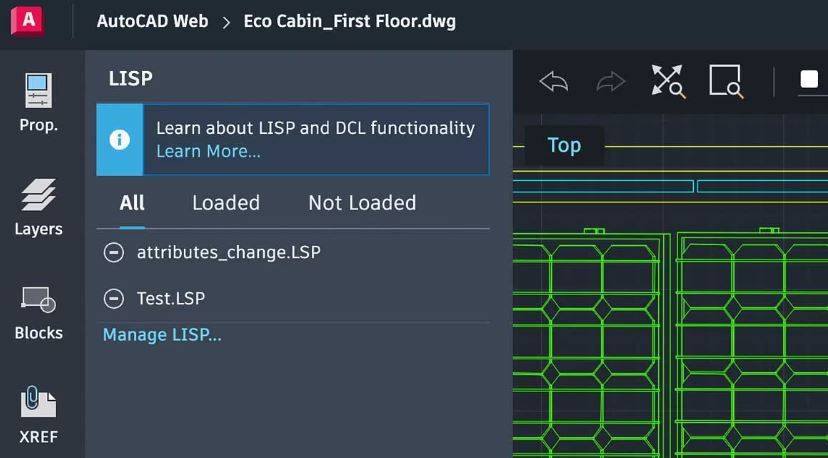

When it comes to my personal AutoCAD Web subscription, I’ve discovered that having access to mobile apps as part of the package is really helpful. Because of this functionality, I am able to integrate my design work across a variety of devices in a seamless manner. Through either the online browser on my mobile device or the AutoCAD app itself, I have quick and easy access to all of my projects.
Even more impressive is the fact that I do not require an active internet connection in order to work on my ideas while I am not connected to the internet. After that, when I reconnect to the internet, I can easily synchronize my work to verify that everything is up to date. Because of this adaptability, both my productivity and the ease with which I can use AutoCAD when I’m on the move have considerably increased.
Autodesk AutoCAD review: Limitation
My own experience with AutoCAD has shown me that it is suitable for both 2D and 3D modeling. However, it is important to remember that versions of AutoCAD produced prior to 2009 did not have as many advanced 3D features as the current version does. There are now dedicated 3D modeling products that are available that are superior to AutoCAD in this sense. If you are primarily searching for sophisticated 3D capabilities, you should explore elsewhere.
When compared to AutoCAD, these specialized 3D software solutions provide improved zooming capabilities, complex 3D plotting, and the capacity to make information-rich PDF prints. In addition, as a result of my own first-hand experience, I’ve come to the conclusion that AutoCAD is not necessarily the best option for undertaking tasks that demand heavy and complicated assembly. Even though it is a flexible tool that may be used for a variety of design tasks, it might not be up to the challenge of doing delicate assembly work.
Autodesk AutoCAD review: Share and Export

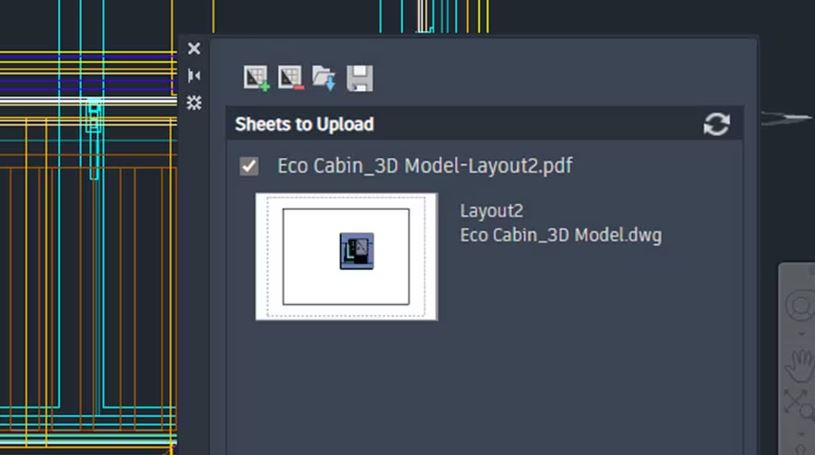

When it comes to working together on a project with other people, I’ve found that using AutoCAD is one of the most beneficial tools to have available. It enables you to quickly share a controlled copy of a file, which means that the file may be accessed from almost any location. In addition, I’ve made use of the facilities offered by AutoCAD to attach PDF and DGN files to my projects as well as import and export them without any problems.
The ability to construct live linkages between Excel spreadsheets and tables built within AutoCAD has been one of the most impressive features for me. During the design process, a significant amount of time and effort can be saved thanks to this feature, which streamlines data administration and guarantees that any changes made in the spreadsheet are automatically reflected in the drawings.
Final Words
AutoCAD is, in my experience, the best choice for computer-aided design (CAD) software, and there are several compelling reasons for this preference. Because of its potential to greatly streamline our work processes, the software developed by Autodesk has garnered the trust of more than one hundred million users, including myself. It is a useful resource for professionals working in a wide variety of fields due to the fact that users can test out the platform for free for a period of 30 days before committing to purchasing a subscription.
Autodesk AutoCAD review: The Good and Bad
Users of AutoCAD have the ability to distribute a controlled version of a file to other users, such as coworkers or collaborators, who can then access the file from any location. You may also build live linkages between Excel spreadsheets and drawn tables, as well as import, export, and attach PDF and DGN files.
The Good
- New versions with improved features are released annually.
- For 30 days, try AutoCAD for free.
- Supports 2D and 3D designs
The Bad
- Can run most efficiently with lots of CPU.
- Learning certain tools and software navigation might be difficult.
Questions and Answers
The creation of architectural, construction, and engineering blueprints, schematics, and models can all be accomplished with the help of the computer-aided design program known as AutoCAD. Autodesk’s website allows users to subscribe to AutoCAD at a cost of $235 per month, $1,865 per year, or $5,315 for three years. Individual subscriptions can be purchased at any of these price points.
The software known as AutoCAD is quite complicated. Beginners who are just starting out with CAD frequently have trouble understanding all of the commands and settings that are accessible to them. It is usual for new users to feel disheartened or quit up entirely since it is simple to feel intimidated by the various icons, tools, and menus, and it is normal for new users to feel that they have no choice but to give up.
