What does Dual Inverter and Triple Inverter Mean in Air Conditioners? – Guide
Nowadays ACs are very common in our lifestyles, but we often get confused between the latest technologies, so in this article we are going to learn the difference between two powerful technologies: Dual Inverter and Triple Inverter AC. Now I’m assuming you have a complete idea about inverter technology. So here we are going to discuss what is triple AC inverter? And the difference between triple AC inverter and double AC inverter.
compressors
The compressor is used to remove heat from the room by compressing the refrigerant coming from the air conditioning evaporator. Think of a compressor like yours heart – With your heart pumps blood through your body, the compressor pumps the refrigerant through the air conditioner. Soda is like blood – just as blood absorbs oxygen and circulates through the body, soda absorbs heat from the room and circulates it in the environment.
Inverter Technology
The inverter is without a doubt the greatest invention in AC lately. The inverter compressor is basically the use of special BLDC motors which can vary the compressor speed depending on the need. In others words, compressors with integrated inverter can run at a different speed depending on the cooling requirement and not always at full speed. Think of the inverter compressor like a car accelerator. When the compressor needs more power, the inverter supplies more power. If less power is required, the inverter will produce less power. With inverter technology, the compressor is always on, but consumes less or more energy depending on the inlet air temperature and the level set on the thermostat. Compressor speed and power are adjusted accordingly. This allows for more accurate cooling and, above all, significant energy savings.
ACs without inverter technology used to come with reciprocating compressors. In a piston compressor, the refrigerant has been previously compressed by moving the piston up and down. Although reciprocating compressors have good pressure generating capacity, they have a low operating speed and a high maintenance cost. Currently, most inverter equipped ACs are equipped with rotary compressors instead of reciprocating compressors. Inverter rotary compressors contain a shaft with a plurality of blades attached to it. This laminated shaft rotates inside the cylinder housing, pushing the cooling gas through the cylinder and compressing it at the same time.
While the variable speed compressor concept remains the same, different manufacturers use some subtle variations to differentiate their AC drive offerings. Let’s examine the different types of inverter compressors on the market and understand the nuances between them.

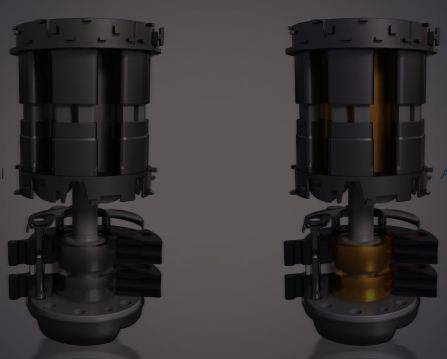

Double/Twin Rotary Inverter
To further improve the design of inverter compressors, many AC brands manufacture ACs with two rotary compressors instead of one. LG markets it as a dual-inverter, Toshiba and O’General call it a dual-inverter, while Blue Star calls it a dual-inverter rotary compressor. Dual inverter ACs are a step ahead of regular inverter ACs. They usually come with a more advanced BLDC motor which helps achieve a much wider operating frequency range which helps provide faster and more accurate cooling.
Now, in common inverter ACs, there is the use of single cylinder variable speed rotary compressors which operate on the single rotation single compression principle. However, it has been observed that this design generates strong vibrations due to swirling waves during AC operation, especially at full load, and thus increases the noise level.
However, using a dual rotary compressor design, two rotary compressors are operated with a phase difference of 180 degrees in their mutual compression time, resulting in much more stable operation. This not only improves rotational balance, but also increases compression torque, allowing the compressor to run from just 700 RPM. up for a peak frequency of 8000 RPM. Because of this, dual inverter ACs can achieve variable tonnage. A 1.5 ton alternating current with dual rotation inverter technology can vary the tonnage of just 0.3 ton up to 1.8 tons.
Triple 8 pole inverter
Taking dual rotary compressor design to the next level, Samsung offers 8-pole triple inverter technology that helps cool 67% faster, runs even at 68oC and 69% more energy savings than conventional air conditioners. Unlike the conventional 4-pole inverter, Samsung’s premium AC inverter uses the 8-pole inverter that reaches the required temperature faster and with less vibration.
Expandable Inverter
New Hitachi AC models feature Expandable inverter technology specially developed for Indian tropical climate. The scalable AC inverter adopts a seamless cascade vector DC inverter system, which has better performance than any common inverter.
The main philosophy behind the design of one-step inverters is that alternating current will expand its capacity as the ambient temperature changes, indoors or outdoors. It guarantees pleasant cooling even in adverse weather conditions, expanding your cooling capacity and minimizing the time required to reach a corresponding cooling temperature. In addition, it also helps to decrease the humidity in the air-conditioned room. To improve the coefficient of performance at full and partial loads, Hitachi has also introduced a new concept called Dual Flow Expansion Technology (DFET). All these additions to Hitachi’s consumable inverter compressor optimize maximum performance to ensure perfect cooling even in extreme temperatures of 52°C.
Inverter Intellisense
Whirlpool ACs offer the smart Intellisense inverter that adapts to cooling needs using the smart sensor network. The sensors can detect the number of users, the outside temperature and can make the inverter work properly for optimal cooling. They also significantly limit electricity consumption, which translates into energy savings. The Intellisense inverter provides silent cooling with a low noise level of 37 dB.
Scroll Inverter Compressor
Daikin is experimenting with the inverter scroll compressor. There are two scrolls, one fixed and the other orbits around the fixed through the swing link in models that come with this type of inverter compressor. During compression, the orbital scroll pushes the refrigerant to the center causing a reduction in the volume of gas. It is later discharged to the condenser using the central port. The biggest advantage of scroll compressors is that they require fewer moving parts and minimal torque variation.
